Ⅰ、工作原理/ working principle

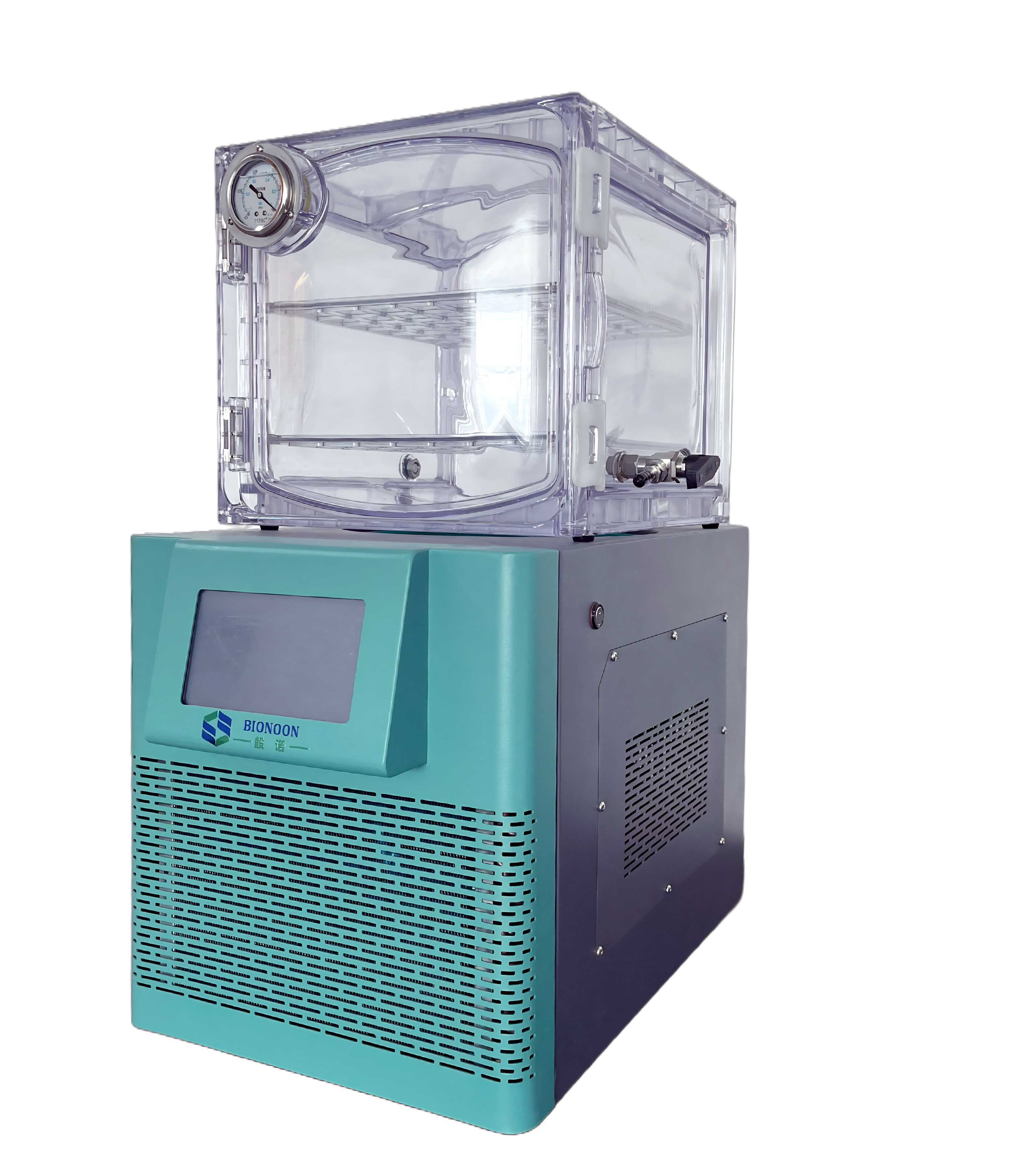

BIONOON-freezon plus方艙式真空冷凍凍干燥機采用方艙式設計，凍干面積比普通臺式凍干機大，PC材質的單開門設計，方便樣品拿取，易于觀察凍干情況。BIONOON-freezon plus方艙式真空冷凍干燥機，適用于散裝(液態、糊狀、固態)常規物質的冷凍干燥。多用于實驗室使用或少量生產，可滿足大多數實驗室常規凍干的要求，主要用在醫學、制藥、生物研究、化工和食品等領域。經冷凍干燥處理的物品易于長期保存，加水后能恢復到凍干前狀態并保持原有生化特性。

The BIONOON-freezon plus compartment-type vacuum freeze dryer features a modular design, offering a larger freeze-drying area compared to standard benchtop models. Its PC-material single-door configuration facilitates easy sample access and observation of the freeze-drying process. This equipment is suitable for bulk materials (liquid, paste, and solid) requiring conventional freeze-drying applications. Primarily designed for laboratory use or small-scale production, it meets most routine freeze-drying demands in scientific settings. The system finds extensive application across medical, pharmaceutical, biological research, chemical, and food industries. Freeze-dried products processed by this technology maintain long-term stability and can fully restore their original biochemical properties upon rehydration while preserving essential characteristics.

Ⅱ、應用范圍 Scope of application

真空冷凍干燥機廣泛用在醫學、制藥、生物研究、化工和食品等領域。經冷凍干燥處理的物品易于長期保存，加水后能恢復到凍干前狀態并保持原有生化特性。

Vacuum freeze dryers are widely used in the fields of medicine, pharmaceuticals, biological research, chemicals and food. After freeze-drying treatment, the goods are easy to be preserved for a long time, and after adding water, they can be restored to the state before freeze-drying and keep the original biochemical properties.

Ⅲ、產品說明 Product Description

BIONOON-freezon plus 方艙型真空冷凍干燥機主要用在醫學、制藥、生物研究、化工和食品等領域。經冷凍干燥處理的物品易于長期保存，加水后能恢復到凍干前狀態并保持原有生化特性。BIONOON-freezon plus真空冷凍干燥機，適用于散裝（液態、糊狀、固態）常規物質的冷凍干燥，可配合西林瓶使用，樣品凍干后，可直接在干燥室壓蓋密封。

BIONOON-freezon plus Vacuum Freeze Dryer is mainly used in the fields of medicine, pharmacy, biological research, chemical industry and foodstuff etc. After freeze drying, the goods can be easily preserved for a long time and maintain the original biochemical properties after adding water. After freeze-drying, the goods are easy to be preserved for a long time, and after adding water, they can be restored to the state before freeze-drying and keep the original biochemical properties. BIONOON-freezon plus Vacuum Freeze-Dryer is suitable for freeze-drying of regular substances in bulk (liquid, paste, solid), and it can be used together with the syringes, and the samples, after freeze-drying, can be directly sealed by pressing the cap in the drying chamber.

Ⅳ、BIONOON-freezon plus方艙型真空冷凍干燥機特點 Technical advantages

自動化控制系統 Automatic Control System

1.采用方艙式設計，區別于傳統圓筒式設計，凍干面積大，卡扣式單開門，易于輕松拿取樣品；

Square cabin design, different from the traditional cylinder design, large freeze-drying area, snap single door opening, easy to pick up samples easily.

2.PC材質真空罩，耐腐蝕，耐有機溶劑;

PC material vacuum cover, corrosion-resistant, resistant to organic solvents.

3.采用7寸液晶觸摸顯示屏，自主研發BIONOON操作系統，觸屏靈敏;

7-inch LCD touch screen, self-developed BIONOON operating system, sensitive touch screen.

4.自動化程度高，操作簡便，可一鍵啟停，自動化霜、自動排水;

High degree of automation, easy to operate, can be a key to start and stop, automatic frost, automatic drainage.

5.斷電保護功能，斷電后自動泄真空，防止真空泵油反吸，保護樣品安全；

Power failure protection function, automatic vacuum relief after power failure, prevent vacuum pump oil anti-suction, protect the sample safety.

6.進口減壓閥自動真空釋放，可接過濾器，保證樣品的潔凈度;

Imported pressure-reducing valve automatic vacuum release, can be connected to the filter, to ensure the cleanliness of the sample.

7.內置冷阱真空保護系統，可設置保護參數，延長真空系統的使用壽命;

Built-in cold trap vacuum protection system, you can set the protection parameters to extend the service life of the vacuum system.

8.標配權限管理，保證實驗數據的安全性;

Standardized authority management, to ensure the security of experimental data.

9.智能化數據記錄系統，可查詢歷史曲線、歷史記錄，并實現數據記錄USB或WIFI導出;

Intelligent data recording system, can query the historical curve, historical records, and realize the data record USB or WIFI export.

10.可升級系統維護提醒功能:真空泵換油提醒、散熱器清潔提醒、儀器運行時間記錄、電壓偏移提醒等;

Upgradable system maintenance reminder function: vacuum pump oil change reminder, radiator cleaning reminder, instrument running time record, voltage offset reminder, etc.

11.采用PLC控制系統，可提供系統定制服務，軟件系統可升級;

PLC control system, can provide system customization services, software system can be upgraded.

制冷系統 Refrigerating System

1.內置304不銹鋼冷凝管，顯示溫度和實際溫度一致，捕水能力更佳;

Built-in 304 stainless steel condensing tube, the display temperature is consistent with the actual temperature, and the water capturing capacity is better;

2.采用混合制冷技術，溫度更低、更穩定;

Hybrid refrigeration technology, lower temperature, more stable;

3.進口制冷壓縮機。

Imported refrigeration compressor.

真空系統 Vacuum System

1.30CM大口徑一體成型冷阱，厚實耐用，密封性更好；

30CM large diameter integrated forming cold trap, thick and durable, better sealing;

2.內置高精度真空傳感器，精確顯示真空度；

Built-in high-precision vacuum sensor, accurately display vacuum degree;

3.選配優質國產或進口真空泵，滿足不同客戶需求；

Compatible with high-quality domestic or imported vacuum pumps to meet different customer needs;

Ⅴ. BIONOON-FREEZON PLUS方艙型真空冷凍干燥機技術參數：Technical specification
·凍干面積/Freeze-drying acreage：0.36㎡

·單層凍干面積/Freeze-drying area per layer: 0.09 m²/層 0.09 m²/layer

·凍干層數/ Freeze-drying capacity: 四層/ 4 layers
·物料盤數量/Tray number:  4個/ 4 pcs

·冷阱溫度/Cold trap temperature：標配≤65℃（空載），選配-90℃（空載）。standard≤-65℃（unladen），optional ≤-90℃（unladen）
·最大凝水量，效能/Maximum water condensate ,efficiency：6kg,6kg/24h
·真空抽氣速率/Vacuum extraction rate：≥120L/min
·極限真空度/Limiting vacuum value：≤10Pa
·整機功率/Total power：1100W
·主機外形尺寸Size（L*W*H）：500×380×520mm
